Highest flexibility, compact in-line
machine with the following features:
1 drop jet fluxer as standard, with an optional extra

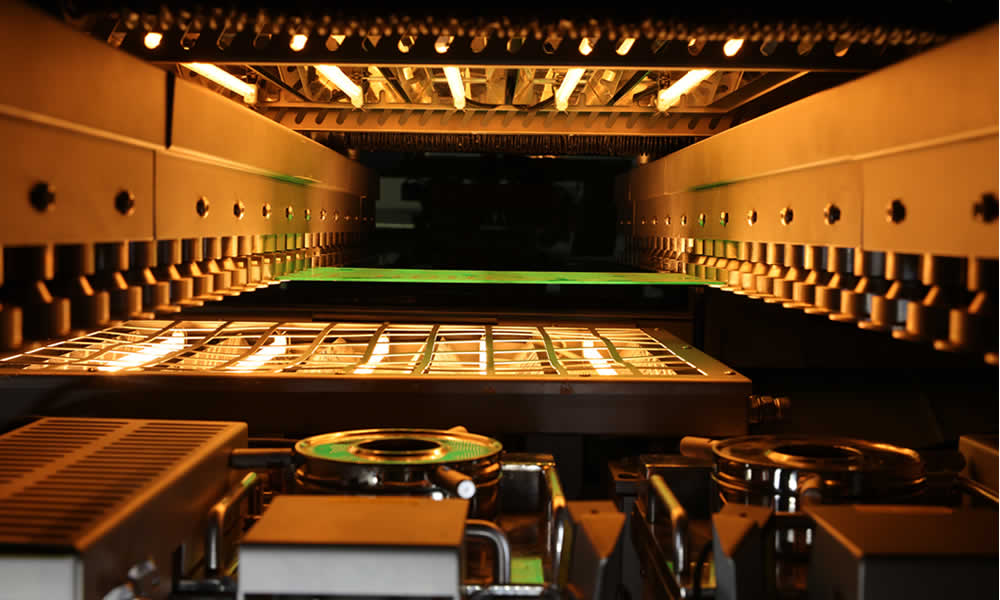

Bottom IR preheating & top preheating zone

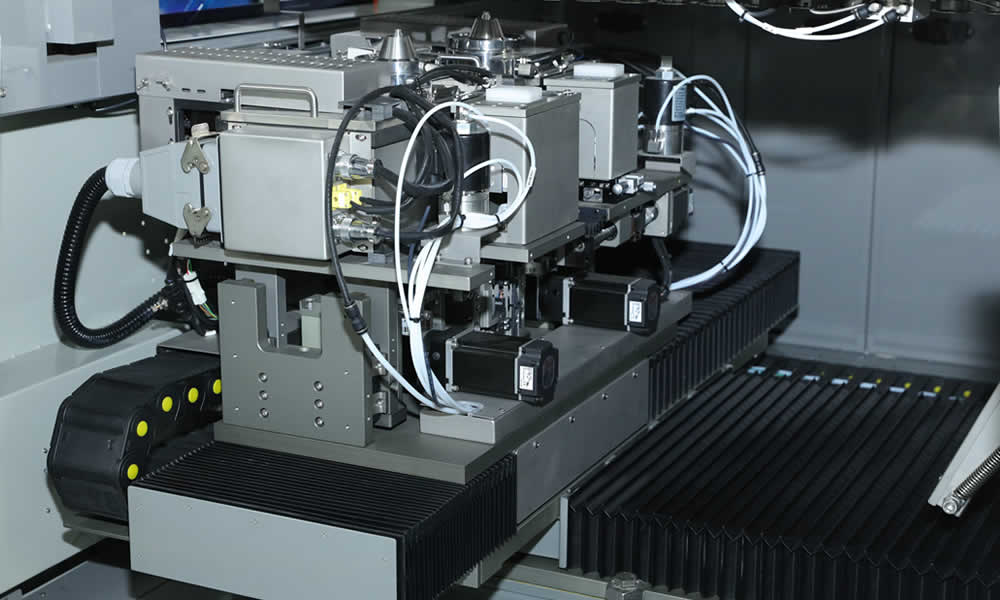

2 solder pots in individual Z-axis
One section conveyor

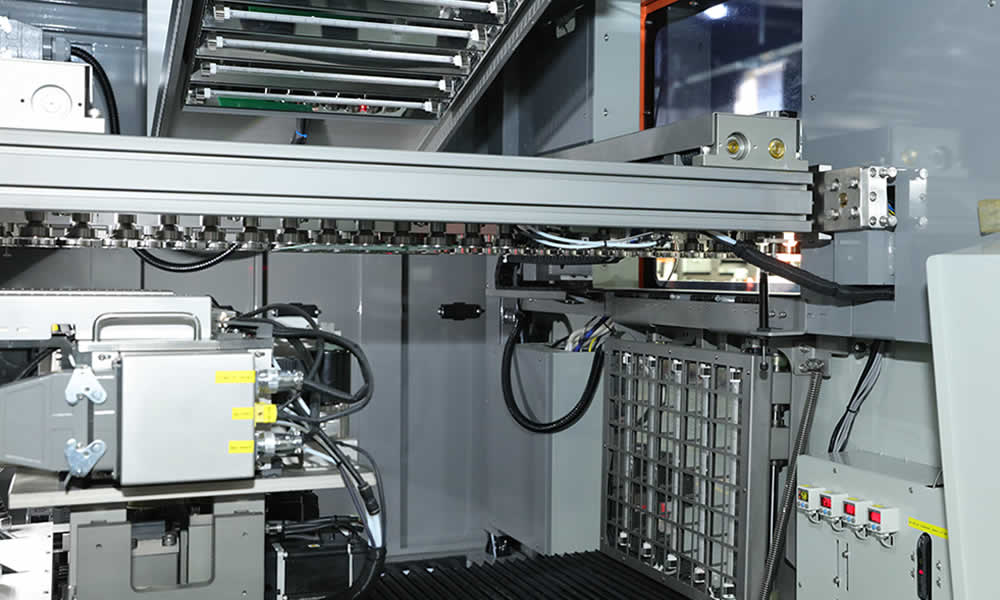

Fixed PCB conveyor with moving solder pot/fluxer
4-axis full servo drive with ball screw movement

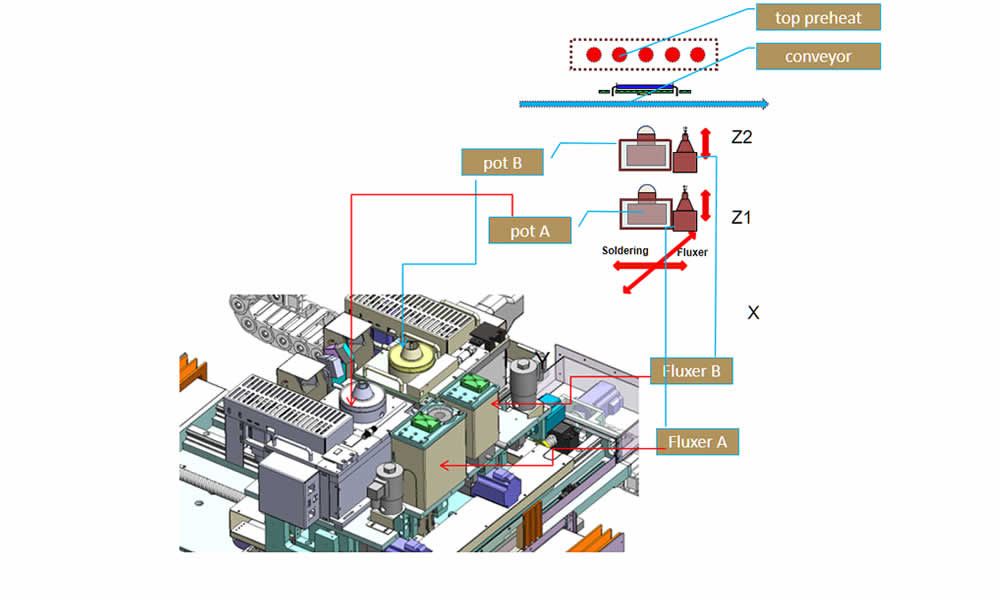

Solder pot and fluxer share XY motion table
All-in-one flux, preheating & soldering
Windows 10 system
Standard equipped with wave height calibration
Real-time soldering process monitor
| FLEX-i2 Specifications | ||
|---|---|---|
| Item | FLEX-i2 | |
| General | ||
| Operating power/Max power | 6KW/16KW | |
| PCB dimension | Min50x50---Max PCB W457.2 x L508mm (18" x 20") (Two nozzle solder individually) Max PCB W508 x L508mm (20" x 20") (Two nozzle solder parallel) | |
| Machine dimension | 1420(L)*1725(W)*1700(H) | |
| Net weight | 900KG | |
| Power supply | 3PH 380V 50HZ | |
| Air supply | 3-5 bars | |
| Exhausting required | 800M3/h | |
| PC | Yes | |
| Typical Program Time | 10 Minutes | |
| PCB Robotic Platform | ||
| Flux Nozzle Type | drop jet fluxer made in Germany | |
| Flux Nozzle Quantity | Standard equip 1 set, optional to equip another set | |
| Flux Tank Capacity | 1L | |
| Flux Tank Quantity | Standard equip 1 set, optional to equip another set (when use two different flux) | |
| Preheat | ||
| Preheating method | Top IR preheat,option with bottom preheat | |
| Solder Management | ||
| Solder pot type | Standard equipped with mechanical pump, optional with electromagnetic pump (made in Germany) | |
| Standard Solder Stations | 2 | |
| Solder Pot Capacity | 15 kgs | |
| Solder Temperature Control | PID | |
| Heat-Up Time | About 40mins | |
| Max Temperature | 350 ℃ | |
| Mini Wave Nozzles | 3 to 12mm | |
| Customized nozzle | Available | |
| Axes of Motion | X, Y, Z1, Z2 | |
| Position Accuracy | + / - 0.05mm | |
| (N2) Inertion Management | ||
| N2 Consumption per Nozzle | 4m3/H | |
| Required N2 Purity | >99.99% | |
