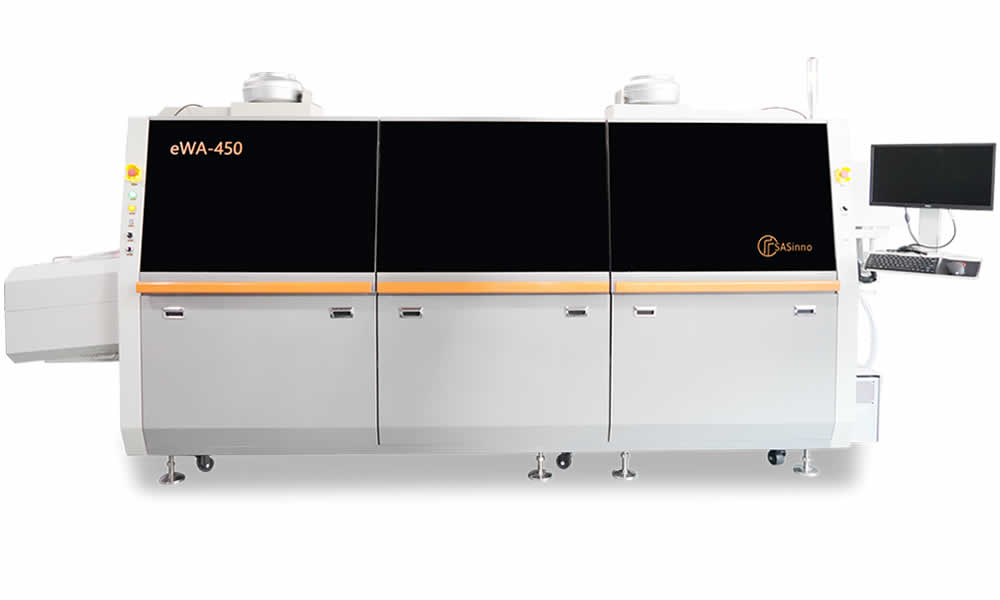

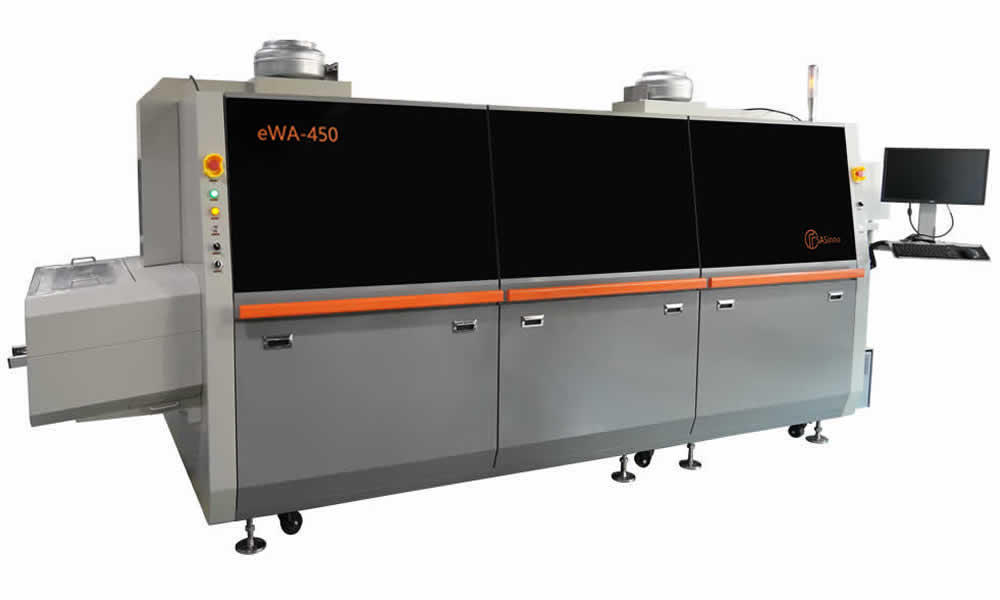

eWA-450 Lead Free Wave Solder Machine Features
● New industrial apperance design makes machine more beautiful.
● PC+ PLC control system form a stable,safe and efficient controlling system, easy for operation.
● Simple software interface, Full English interface is very easy for operation.
● The one-week timer can make the machine turn on/off automatically to melt the solder before operator come to work.
● The specially guiding rail with strong support to reduce the deformation.
● Sprayer driven by stepper motor, the speed and spraying width can be set on software.
● High quanlity sprayer provides perfect atomization performance of the flux.
● Adding flux automatically, When flux is lower than limit, it will switch on the pump to feed flux in automatically. Operator just need to put the whole barrel flux into the flux tank, meanwhile put the sucking tube into the barrel.
| eWA-450 Specifications | |
|---|---|
| Model | eWA-450 |
| PCB width | max 450MM |
| Running power /General power | 12KW/36KW |

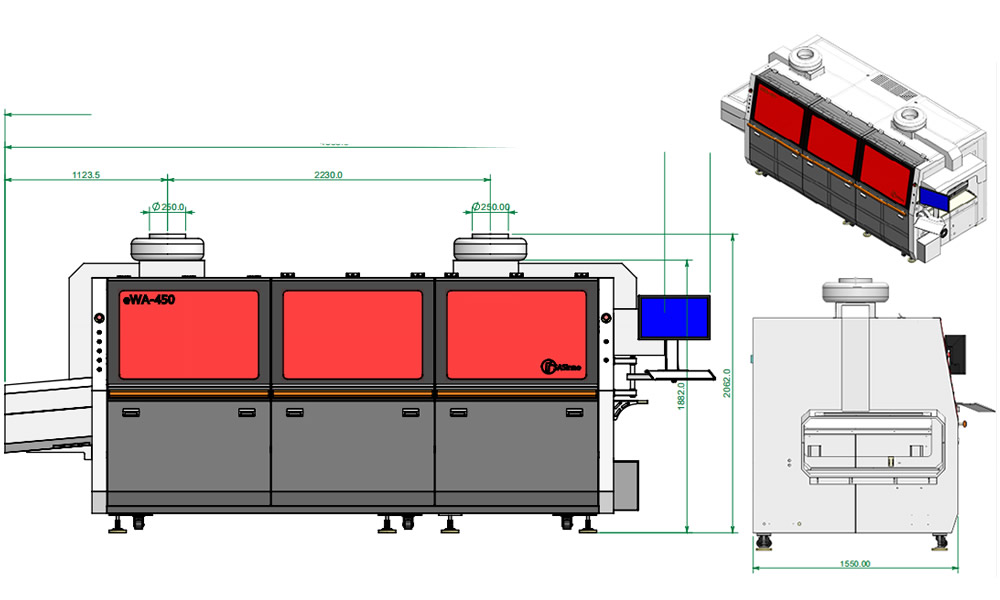

| Machine Dimension | 4465(L)*1550(W)*1812(H) |
| Net Weight | 2100KG |
| Controlling System | PC+PLC control |
| Infeeding Conveyor Height | 750mm+/- 20mm |
| Conveyor Speed | 300MM-2000MM/Min |

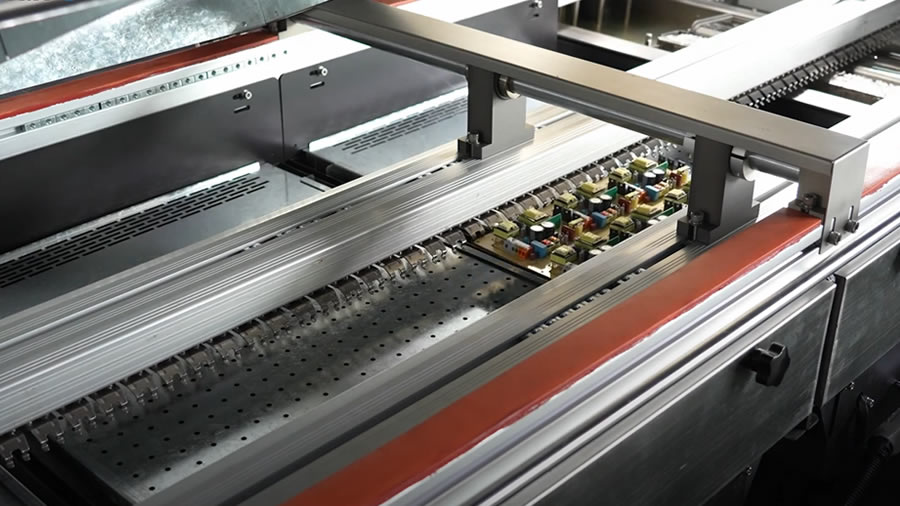

| Conveyor Type | Heavy duty Ti finger |
| PCB Direction | Left to Right |
| Flux adding | Automatic |
| Spray drive | Stepper motor drive |
| Sprayer | ST-6 spraying nozzle |

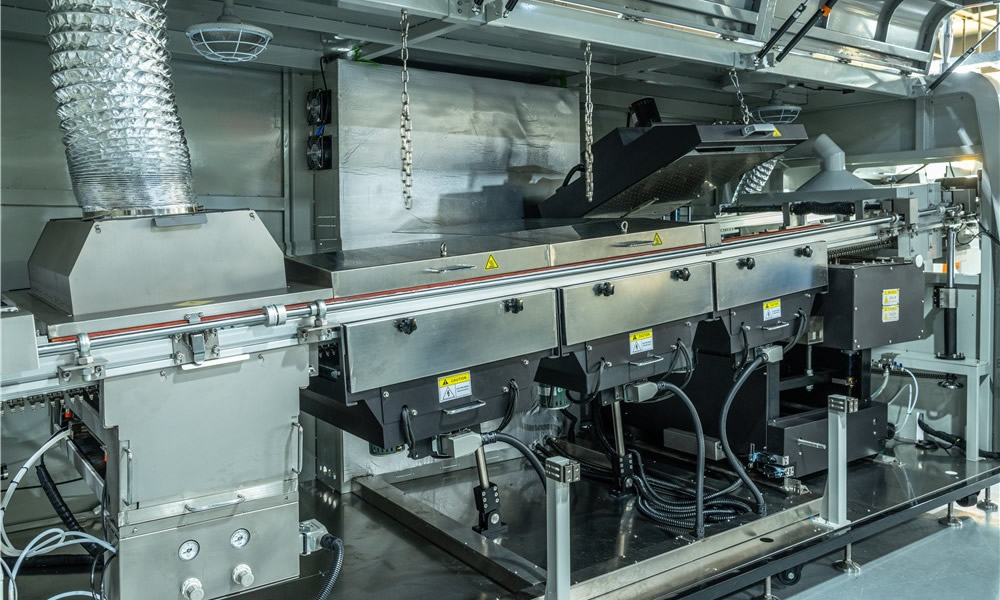

| Preheat | 3 bottom hot air convection zone+1 top hot air convection zone |
| Preheat power | 5kw/zone |
| Preheating temperature | Max: 250℃ |
| Length of preheating zone tunnel | 1800mm |
| Solder Pot Volume | Max: 550kg |
| Solder Pot Material | Titanium |
| Solder Pot Temperature | Max: 300℃ |
| Wave Number | Dual Waves |
| Solder Pot Up/Down | Automatically |
| Solder Pot In/Out | Automatically |
| Conveyor Type | Heavy duty V finger |
| Exhausting blower | Standard equipped 2 set, connecting port diameter:200mm |
| Air Supply | 3-5BAR |
| Power supply | 3PH 380V 50HZ |
