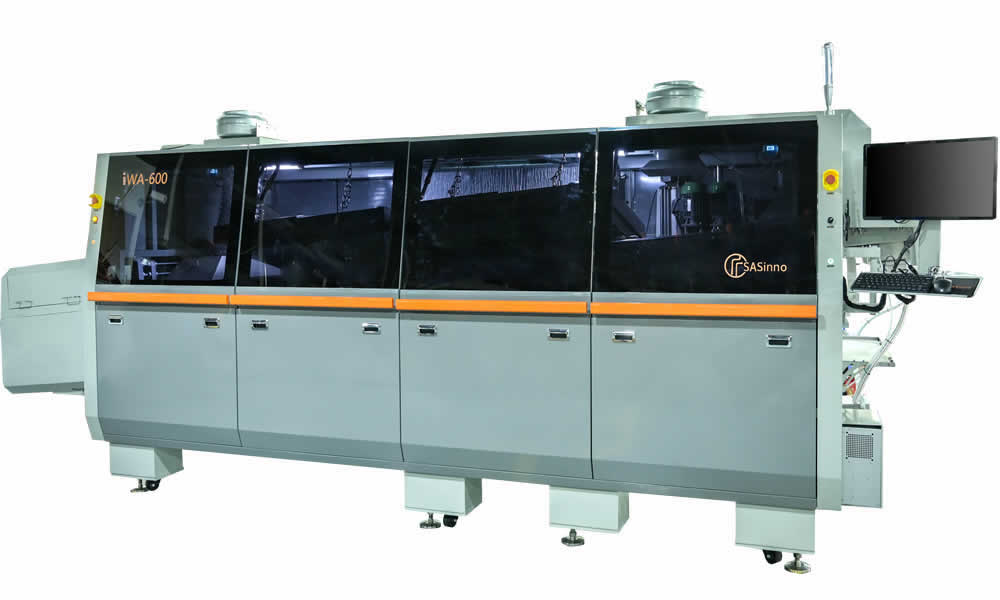

iWA-450/600 Lead Free Wave Solder Machine Brief Description
● PC+PLC control system.
● High quality sprayer driven by servo motor.
● Unique selective fluxing function.
● 1.8m or 2.4m preheating zone length.
● Preheating hot air speed adjustable by software.
● Cast iron coated with ceramic for lead-free application.
● Auto solder pot in/out, up/down function.
● Heavy duty titanium finger conveyor.
● Industry 4.0 capable.
iWa series Lead Free Wave Solder Machine Specifications | ||||
---|---|---|---|---|
Model | iWA-450 | iWA-600 | iWA-450L | iWA-600L |
PCB width | max 450MM | max 600MM | max 450MM | max 600MM |
Running power /General power | 12KW/36KW | 15KW/43KW | 14KW/41KW | 118KW/50KW |
Machine Dimension | 4558(L)*1612(W)*2042(H) | 4558(L)*1762(W)*2042(H) | 5448(L)*1612(W)*2042(H) | 5448(L)*1762(W)*2042(H) |
Net Weight | 2100KG | 2500KG | 2500KG | 3000KG |
Controlling System | PC+PLC control | PC+PLC control | PC+PLC control | PC+PLC control |
Infeeding Conveyor Height | 750mm+/- 20mm | 750mm+/- 20mm | 750mm+/- 20mm | 750mm+/- 20mm |
Conveyor Speed | 300MM-2000MM/Min | 300MM-2000MM/Min | 300MM-2000MM/Min | 300MM-2000MM/Min |
Conveyor Type | Heavy duty Ti finger | Heavy duty Ti finger | Heavy duty Ti finger | Heavy duty Ti finger |
Conveyor Driver | Servo motor drive | Servo motor drive | Servo motor drive | Servo motor drive |
PCB Direction | L to R, optional R to L | L to R, optional R to L | L to R, optional R to L | L to R, optional R to L |
Flux adding | Automatic | Automatic | Automatic | Automatic |
Spray driver | Servo motor drive | Servo motor drive | Servo motor drive | Servo motor drive |
Flux tank level alarm | standard | standard | standard | standard |
Fluxing path | selectively or full board | selectively or full board | selectively or full board | selectively or full board |
Preheat | 3 bottom +1 top hot air convection zone | 3 bottom +1 top hot air convection zone | 4 bottom +1 top hot air convection zone | 4 bottom +1 top hot air convection zone |
Preheat power | 5kw/zone | 6kw/zone | 5kw/zone | 6kw/zone |
Preheat temp | Max :200℃ | Max :200℃ | Max :200℃ | Max :200℃ |
Length of preheating zone | 1800mm | 1800mm | 2400mm | 2400mm |
Solder Pot Volume | Max: 550kg | Max: 700kg | Max: 550kg | Max: 700kg |
Solder Pot Material | cast iron coated with ceramic OR Ti material | cast iron coated with ceramic | cast iron coated with ceramic OR Ti material | cast iron coated with ceramic |
Solder Pot Temperature | Max: 300℃ | Max: 300℃ | Max: 300℃ | Max: 300℃ |
Wave Number | Dual Waves | Dual Waves | Dual Waves | Dual Waves |
Solder Pot Up/Down | Automatically | Automatically | Automatically | Automatically |
Solder Pot In/Out | Automatically | Automatically | Automatically | Automatically |
Exhausting blower | Standard equipped 2 sets, Dia 200mm | Standard equipped 2 sets, Dia 200mm | Standard equipped 2 sets, Dia 200mm | Standard equipped 2 sets, Dia 200mm |
Air Supply | 3-5BAR | 3-5BAR | 3-5BAR | 3-5BAR |
Power supply | 3PH 380V 50HZ or 3PH 220V | 3PH 380V 50HZ or 3PH 220V | 3PH 380V 50HZ or 3PH 220V | 3PH 380V 50HZ or 3PH 220V |
